We can customize the lamp length and diameter per your requirements. Our minimum order quantity for Custom lamps is 100pcs. For the best price and lead time, please email or give us a call.

General Information about UV-lamps

The Ultraviolet light is classified in three ranges of wavelength:
UV-A from 315nm to 400nm
UV-B from 280nm to 315nm
UV-C from 100nm to 280nm

We can offer UV-A 360nm, UV-C 185nm and 254nm lamp. Customized products have a minimum order of 100pcs and 4-6 weeks lead time. Contact us your requested dimmensions for a quotation

UV-C Cold Cathode 254nm Germicidal Lamps
Quartz Germicidal Lamps are low pressure lamps that generate most of the energy at 254nm (253,7nm - Mercury line) and some energy at 185nm. In medical terminology they are known as UV-C lamps.

UV-C lamps are manufactured with quartz glass, and have traces of Mercury (less than 3mg per lamp). These lamps generate UV radiation at 254nm. There is also a small amount of Ozone generated by the residual radiation of 185nm and corona effect for all UV 254nm lamps.

Our 12V DC Inverters are designed to supply the lamp with the correct voltage.


As major applications we can mention:
  • Air Disinfection. It is recommended in the area commonly used by people suspected to be infected with Airborne transmitted diseases such us: physician waiting room, hospital waiting room, surgical, room, holding areas, treatment rooms, veterinary and pet facilities, and everywhere where people and/or animals are congregating. Since UV radiation is harmful to human eyes, it is mandatory to avoid direct exposure to UV radiation/light using proper mounting fixtures for these lamps. To accelerate the lamp germicidal effect it is highly recommended a good ventilation/movement of the air using a small fun that will mixed the treated with untreated air, diminishing the concentration of the air born microorganism and bacteria.
  • Air Ozonation. Ozone has odor neutralization ability. The UV-185 energy radiation breaks apart some of the Oxygen molecules (O2) into two radicals Oxygen (O-) that combines and forms Ozone (O3).The combined odor neutralization and germicidal effects make UV-C lamps a very low cost methode.
  • Water Disinfection. For many years it is very well known that one of the radiation effects at 254nm is water disinfection with no residual or side effect. Using the UV disinfection system will keep the water free of any bacteria or other organic materials that can grow. UV-254nm radiation is one of the most effective water disinfection method without any residual or side effects. The cost of operation versus chemical methode is very low.
  • Chlorine Removal. Exposing the water to UV-185nm generated by the quartz cold cathode lamps will also lead to a photochemical reaction similarly with the sun radiation. Through photochemical reaction the chlorine disassociates to chlorine ion
    (Cl-) and Hydrochloric Acid (HCl) which can be easy removed
    from the water.
  • Carbon Reduction. Semiconductor Processing Industry requires a high purity of water with no organic based components. The presence of carbon in water can be very efficient minimized exposing the water to UV -185nm germicidal radiation. Under UV radiation some of the water molecules are discomposing on H and OH. As OH radical is a very powerful oxidant all the residual carbon will be transformed in CO2. Typical dosage required may vary between 100mWsec/cm2 to 900mWsec/cm2
  • Sterilization Time. Sterilization time in second = Sterilization Dosage/Radiation Intensity Sterilization Dosage (uW, sec/cm2) = UV intensity * Exposure Time Radiation Intensity (uW/cm2) = UV Intensity / cm2. Our Miniature Quartz Cold Cathode lamps generate about 5mW/cm2 at quartz level. The efficient sterilization dosage for a certain surface that should be sterilized is: 10mWsec/cm2 / 5mW/cm2 = 2 seconds. This should be the total time that surface we want to disinfect should remain under UV radiation. To calculate the sterilization dosage for water or air we may need to take in account a certain number of factors such us: lamp intensity radiation, intensity variation within distance, the chamber size, the flow rate, the absorbtion coefficient of the media, etc
    .
CAUTION !!!

SAFETY CONCERNS:

• Although the amount of UV and Ozone generation is very small, we recommend all suitable precaution to avoid eyes or skin exposure to UV radiation. It can produce serious damage to the eye, which may lead to temporary or permanent vision impairment. For this reason, the light produced by a germicidal lamp must be carefully shielded against both direct viewing and reflections and dispersed light that might be viewed.
• Do not touch the glass/quartz with the bare hands. Rubber gloves are recommended.
• Use appropriate protection, wires and insulated materials to avoid surge voltage from the lamp leads. Do not touch plug with wet hands.
• Discard the lamps in accordance with safety code requirements for materials containing Mercury.
• When Lamp in use we recommend an adequate ventilation.
• Take also all suitable requirements recommended by the government safety code to avoid a prolong inhalation of Ozone generated by lamp.
• The operation risk is in Group 1 per ANSI / ESNA PR27.3-96.
• This lamp should not be used for cosmetic treatments, therapeutic or diagnostic purpose.
• This product is not a toy. Use and store out of reach of children
• Intended for indoor use only. Do not use the ballast in wet or dump conditions.
• Do not expose/use lamp, ballast and wires in excessive heat, moisture, humidity, condensation, and other weather elements.
• Only our lamps with water protected sleeve can be inserted in water up to the black flange.


UV Lamps and kits currently in Stock


MCCUV-CW-50x8x50 185nm (generates ozone)
UV-C Lamp 185nm, 50mmx8mmx50mm, 4mm dia. attached high voltage wire and connector
Click here for complete specifications (coming soon)
$19.58

UV-C 185nm Ushape 50mm Lamp & 5V DC Dual Inverter (generates ozone)
It includes:
2pcs UV-C 185nm Lamp U-Shape 50mm x 8mm x 50mm with attached high voltage wire and connector
1pcs 5V DC Dual Lamp Inverter
1pcs Low Voltage Wire 150mm length
Click here for lamp specifications
Click for inverter specifications
$27.79

UV-C 185nm Ushape 50mm Lamp & 12V DC Dual Inverter (generates ozone)
It includes:
2pcs UV-C 185nm Lamp U-Shape 50mm x 8mm x 50mm with attached high voltage wire and connector
1pcs 12V DC Dual Lamp Inverter
1pcs Low Voltage Wire 150mm length
Click here for kit specifications
Click here for dual inverter specifications
$27.79



UV-C 185nm Ushape 150mm Lamp & 12V DC Single Inverter (generates ozone)
It includes:
1pcs UV-C Lamp 185nm U-Shape 150x10x150mm w/harness & connector
1pcs 12V DC Dual Lamp Inverter with Shell
1pcs Low Voltage wire w/ Connector
Click here for lamp specifications
Click here for inverter specifications
$17.78


UV-C 185nm Dual U-shape 150mm Lamp 12V DC (generates ozone)
It includes
:
2pcs UV-C Lamp 185nm U-Shape 150x10x150mm w/harness & connector
1pcs 12V DC Dual Lamp Inverter with Shell
1pcs Low Voltage wire w/ Connector
Click here for complete specifications
Discontinued by manufacturer. Single Lamp & inverter offered above



MCCUV-50/5 254nm
UV-C Lamp 254nm, 50mm length by 5mm dia.
Click here for complete specifications
$16.58
(pack of 2)

MCCUV-75/5 254nm
UV-C Lamp 254nm, 75mm length by 5mm dia.
Click here for complete specifications
Special Order Only
Min. order 100pcs - contact us for details

MCCUV-100/5 254nm
UV-C Lamp 254nm, 100mm length by 5mm dia.
Click here for complete specifications
Special Order Only
Min. order 100pcs - contact us for details

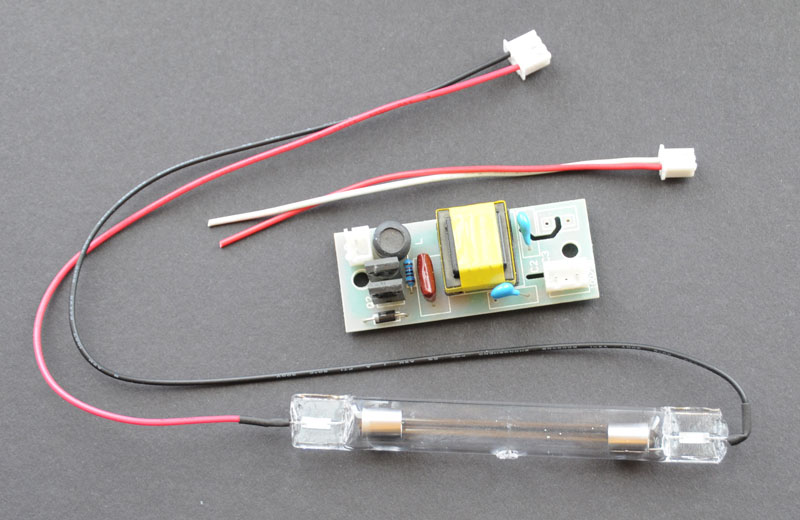

UV-C 254nm Germicidal 100x12mm Lamp & 12V DC Single Inverter
It includes:
1pcs UV-C Lamp 100mm length x 12mm dia. with attached wires
1pcs 12V DC Single Lamp Inverter
1pcs Low Voltage Wire 150mm length
Click here for specifications
$20.19


UV-C 254nm 100x12mm Lamp & 12V DC Dual Inverter
Kit includes:
2pcs UV-C Lamp 100mm length x 12mm dia. with attached wires
1pcs 12V DC Dual Lamp Inverter
1pcs Low Voltage Wire 150mm length
Click here for specifications
$28.49



UV-C 254nm Dual U-shape 150mm Lamp 12V DC
It includes:
2pcs UV-C Lamp 254nm U-Shape 150x10x150mm w/harness & connector
1pcs 12V DC Dual Lamp Inverter with Shell
1pcs Low Voltage wire 100mm length
Click here for complete specifications
Discontinued by manufacturer. Single Lamp & inverter coming soon!


UV-C 254nm Ushape 150mm Lamp & 12V DC Single Inverter
It includes:
1pcs UV-C Lamp 254nm U-Shape 150x10x150mm w/harness & connector
1pcs 12V DC Dual Lamp Inverter with Shell
1pcs Low Voltage wire w/ Connector
Click here for lamp specifications
Click here for inverter specifications
$17.78
UV-C 254nm Ushape 50mm Lamp w/Sleeve & 12V DC
Kit includes:
1pcs UV-C Lamp U-Shape 50mm x 8mm x 50mm with Quartz Sleeve and attached High Coltage wire & Connector
1pcs 12V DC Dual Lamp Inverter
1pcs Low Voltage Wire 150mm length
Click here for lamp specifications
Click here for inverter specifications
$21.99



UV-C 254nm Ushape 50mm Dual Lamp 5V DC Kit
Kit includes:
2pcs UV-C Lamp U-Shape 50mm x 8mm x 50mm with high voltage wire and plug
1pcs 12V DC Dual Lamp Inverter
1pcs Low Voltage Wire 150mm length
Click here for lamp specifications
Click for complete specifications
$27.79


UV-C 254nm Ushape 50mm Dual Lamp 12V DC Kit
Kit includes:
2pcs UV-C Lamp U-Shape 50mm x 8mm x 50mm with high voltage wire and plug
1pcs 12V DC Dual Lamp Inverter
1pcs Low Voltage Wire 150mm length
Click here for lamp specifications
Click here for inverter specifications
$27.79




UV-C 254nm Ushape 100mm Lamp with Sleeve 12V DC Kit
Kit includes:
1pcs UV-C Lamp U-Shape 100mm x 8mm x 100mm with Quartz Sleeve and attached High Voltage wire & Connector
1pcs 12V DC Dual Lamp Inverter
1pcs Low Voltage Wire 150mm length
Click here for lamp specifications
Click here for inverter specifications
$22.49



UV-C 254nm Ushape 100x8x100mm Dual Lamp 12V DC Kit
Kit includes:
2pcs UV-C Lamp U-Shape 100mm x 8mm x 100mm w/ high voltage wire and connector
1pcs 12V DC Dual Lamp Inverter
1pcs Low Voltage Wire 150mm length
Click here for lamp specifications
Click for inverter specifications
$27.99


MCCUV-CV-50x8x50 254nm
UV-C Lamp 254nm, 50mmx8mmx50mm, 4mm dia. with Quartz Sleeve and attached High Voltage wire & Connector
Click here for complete specifications
SOLD OUT
$14.49



MCCUV-C-50x8x50 254nm
2pcs UV-C Lamp 254nm, 50mmx8mmx50mm, 4mm dia.
Click here for complete specifications
Special Order Only
Min. order 100pcs - contact us for details


MCCUV-CW-50x8x50 254nm
UV-C Lamp 254nm, 50mmx8mmx50mm, 4mm dia. with High Voltage wire & Connector
Click here for complete specifications
$19.58


MCCUV-C-75x8x75 254nm
2pcs UV-C Lamp 254nm, 75mmx8mmx75mm, 4mm dia.
Click here for complete specifications
$18.48 (pack of 2) only 4 left in stock

MCCUV-CV-100x8x100 254nm
UV-C Lamp 254nm, 100mmx8mmx100mm, 4mm dia. with Quartz Sleeve and attached High Voltage wire & Connector
Click here for complete specifications
$14.75

MCCUV-CW-100x8x100 254nm
UV-C Lamp 254nm, 100mmx8mmx100mm with attached High Voltage wire & Connector
Click here for complete specifications
$19.98


MCCUV-150x10x150
UV-C 254nm U-Shape 150x10x150mm lamp with attached 300mm wire & connector
Click here for complete specifications
$20.00 (pack of 2)

. High voltage wire with Connector Part No. HV275
High voltage wire min. 225mm long, it connects the inverter to the lamp
(click picture to enlarge)
$1.49


Low voltage wire with Connector Part No. LV150
Low voltage wire min. 150mm long, it connects the inverter to you power source
(click picture to enlarge)
$1.49



5V Dual Lamp Inverter, Part No. INV-2L-5V-200
(for use only with straight 50mm lamps and U-shape 50mm lamps)
The inverter is designed to supply the Cold Cathode Lamp with correct voltage for lamps up to 200mm length. First, it will supply a starting voltage up to 700-750 vrms. Then the voltage will drop supplying the lamp a constant current of 4-6 mA at 40-50 KHz. To power the lamp we highly recommend our invertors designed for each type of lamp length.
Click for complete specifications
$6.99


12V Single Lamp Inverter, Part No. INV-1L-12V-300
The inverter is designed to supply the Cold Cathode Lamp with correct voltage for lamps up to 300mm length. First, it will supply a starting voltage up to 900-950 vrms. Then the voltage will drop supplying the lamp a constant current of 4-6 mA at 40-50 KHz. To power the lamp we highly recommend our invertors designed for each type of lamp length.
Click for complete specifications
$6.29


12V Dual Lamp Inverter, Part No. INV-2L-12V-300
The inverter is designed to supply the Cold Cathode Lamp with correct voltage for lamps up to 250mm total length. First, it will supply a starting voltage up to 900-950 vrms. Then the voltage will drop supplying the lamp a constant current of 4-6 mA at 40-50 KHz. To power the lamp we highly recommend our invertors designed for each type of lamp length.
Click for complete specifications
$6.99
SOLD OUT



12V Dual Lamp Inverter, Part No. INV-2L-12V-300N
(Designed for the U-shape 100mm lamps)
The inverter is designed to supply the Cold Cathode Lamp with correct voltage for lamps up to 250mm total length. First, it will supply a starting voltage up to 900-950 vrms. Then the voltage will drop supplying the lamp a constant current of 4-6 mA at 40-50 KHz. To power the lamp we highly recommend our invertors designed for each type of lamp length.
Click for complete specifications
$6.99
